Red Laser Diode Line-up
> Line-up
�@
> Summary of Features (Typ.)
Tc=25
Part No. Main Feature Electro-Optical Characteristics
Po Topr Po lth lop lm
mW mW mA mA nm mA
DL-3038-013 5mW at 40 7 -10 to +40 5 30 45 635 0.20 8.0 30 B I
DL-3038-023 3mW at 40 3 -10 to +40 3 20 25 0.20 8.0 30 B I
DL-3038-033
DL-3038-034 		5mW at 50 5 -10 to +50 5 30 40 0.20 8.0 30 B I, IV
DL-4038-021 10mW at 40 10 -10 to +40 10 35 55 0.15 8.0 30 B I
DL-4038-031 10mW at 50 10 -10 to +50 10 35 55 0.15 8.0 30 B I, III
DL-4038-026 20mW at 40 25 -10 to +40 20 40 70 0.20 7.0 28 B I, III
DL-LS1035 30mW at 40 35 -10 to +40 30 50 90 0.30 7.0 30 B I
DL-3148-013 5mW at 40 7 -10 to +40 5 30 45 0.20 8.0 30 C I, III
DL-4148-021 10mW at 40 12 -10 to +40 10 40 60 0.15 8.0 30 C I, III
DL-3148-023 3mW at 40 3 -10 to +40 3 20 25 0.15 8.0 30 C I, III
DL-3148-033
DL-3148-034 		5mW at 50 5 -10 to +50 5 40 55 0.20 8.0 30 C I, III
DL-3147-021 5mW at 40 5 -10 to +40 5 30 45 650 0.40 7.5 30 C I
DL-3147-031 5mW at 50 7 -10 to +50 5 25 35 650 0.20 8.0 30 C I, III
DL-3147-065 5mW at 70 7 -10 to +70 5 25 35 0.20 8.0 30 C I, II, III
DL-3147-085 5mW at 80 7 -10 to +80 5 25 35 0.20 8.0 30 C I, II, III
DL-3247-165 5mW at 70 7 -10 to +70 5 25 35 0.20 8.0 30 D I, II, III
DL-4147-061 10mW at 70 12 -10 to +70 10 30 50 0.30 8.0 28 C I, II, III

DL-3107-165 		5mW at 70 7 -10 to +70 5 20 30 655 0.10 8.0 30 I II
DL-5147-041 30mW at 60 30 -10 to +60 30 45 80 0.03 7.0 23 C I
DL-LS1027 70mW at 70 50 -10 to +70 50 45 110 660 - 8.5 17 C IV
DL-3039-011 5mW at 60 5 -10 to +60 5 30 45 670 1.20 8.0 33 B I
DL-3149-057 5mW at 60 7 -10 to +60 5 25 40 1.50 8.0 30 C I, III
DL-4039-011 10mW at 50 10 -10 to +50 10 40 60 675 0.15 8.0 30 C I
DL-LS1018 10mW , 2Beam 10X2 -10 to +60 10 40 60 0.15 8.0 30 E V

Under development
Infrared Laser Diode Line-up
> Line-up


�@
> Summary of Features (Typ.)
Tc=25ºC
Part No. Main Feature Electro-Optical Characteristics
Po Topr Po lth lop lm
mW mW mA mA nm mA
DL-3144-005S Low droop 8 -10 to +60 5 25 45 785 4.50 9.0 30 B I
DL-3144-007S Low droop 5 -10 to +60 3 25 35 0.60 9.0 30 B I
DL-4034-154S 10mW at 60 15 -10 to +60 10 30 60 0.40 9.0 30 B I, IV
DL-LS2003 15mW 2Beam 15X2 -10 to +60 15 30 55 0.40 8.0 30 B I
DL-4140-001S 20mW at 60 25 -10 to +60 20 25 60 0.75 9.0 30 B I, III
DL-7140-201S 85mW(Pulse) 80 -10 to +60 70 30 100 0.25 8.0 28 B I, III
DL-7240-201S 85mW(Pulse) 80 -10 to +60 70 30 100 - 8.0 30 B I
DL-7140-201H 120mW(Pulse) 80 -10 to +60 70 30 100 - 8.0 30 C I, III

DL-7140-201K 		150mW(Pulse) 80 -10 to +60 70 30 100 - 8.5 30 C I, III
DL-3150-103
DL-3150-105		 Frame Laser 5 -10 to +70 3 35 45 785 0.20 10.5 30 C I, III
DL-3150-106
DL-3150-107		 Frame Laser 5 -10 to +60 3 35 45 0.20 8.5 30 C I, III

DL-3180-121		 Frame Laser,
Low current		 5 -10 to +60 3 20 25 790 0.20 10.5 30 C I
DL-LS3007 Frame Laser,
Low current		 5 -10 to +60 3 20 25 0.20 10.5 30 C I, III
DL-LS3004 Frame Laser,
5mW		 7 -10 to +70 5 20 30 0.30 10.5 30 C I, II, III

DL-3150-133		 Frame Laser,
5mW		 7 -10 to +70 5 20 30 0.30 10.5 30 C I, II, III
DL-7032-001 100mW at 50 100 -10 to +50 100 50 140 830 0.20 8.0 30 D I, II, III
DL-8032-001 150mW at 50 150 -10 to +50 150 50 185 0.50 8.0 28 C I, II, III

at the power of ratings Export control-rgulations products Under development

Part Number Coding



Infrared Laser Diode Line-up
> Can Type Laser Diodes

�@
> Frame Type Laser Diodes

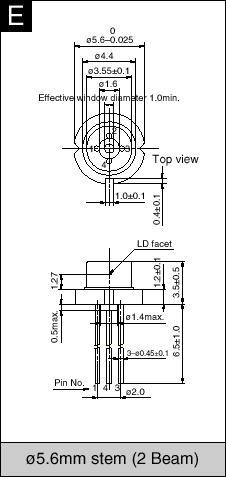

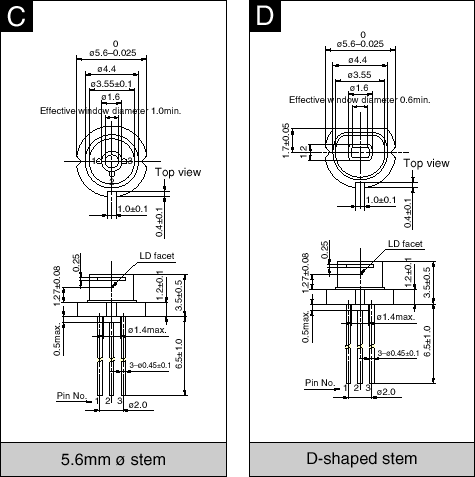

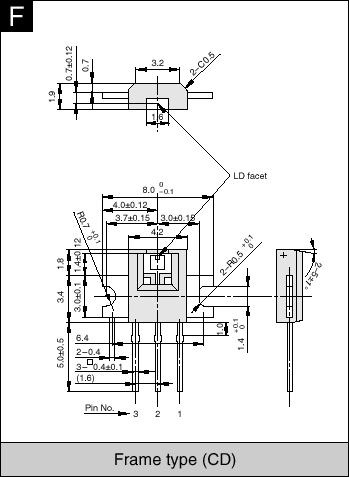

External Appearance
